Reports - Configuring¶

This section covers how to configure the six report templates in WideQuick MOD, and how to use the built-in Report History to recreate or resend failed reports.

• Alarm Report
• Alarm Report One Alarm
• Energy Report
• Energy Report Week
• Delta Report Year
• Delta Report Week

Alarm Report¶

The Alarm Report generates a complete overview of all alarms across the entire system. It includes a pie chart showing alarm distribution by alarm class (A–F by default) and a full list of all alarms triggered during the selected time period. The alarm classes can be customized as needed.

By default, the Alarm Report fetches data from the database connected to the Larmlogg logger. To store data in a different database, change where the Larmlogger stores its data. This does not affect the report itself.

However, if a separate logger is set up for alarms, the report must be updated accordingly. Follow these steps:

• Set up the new logger with the type Alarm and select the desired database. See Loggers for more information.
• Update the macro call in the report template (see image).
• Update the view called Alarm_Report to reference the new logger.

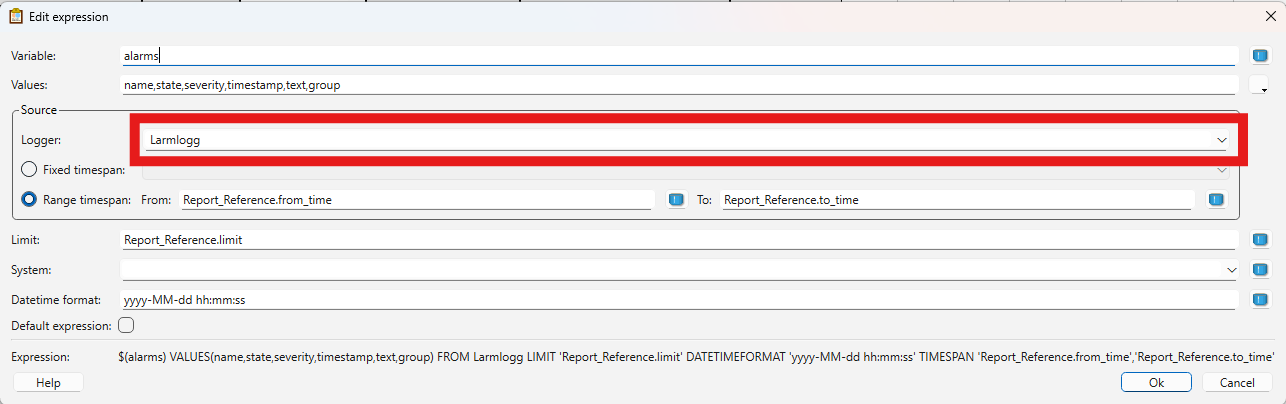

To change the logger used in the macro, locate the macro command and change FROM Larmlogg to FROM <YourLogger>. Edit the text directly, or right-click the cell containing the macro command and select Edit Expression to open the expression editor.

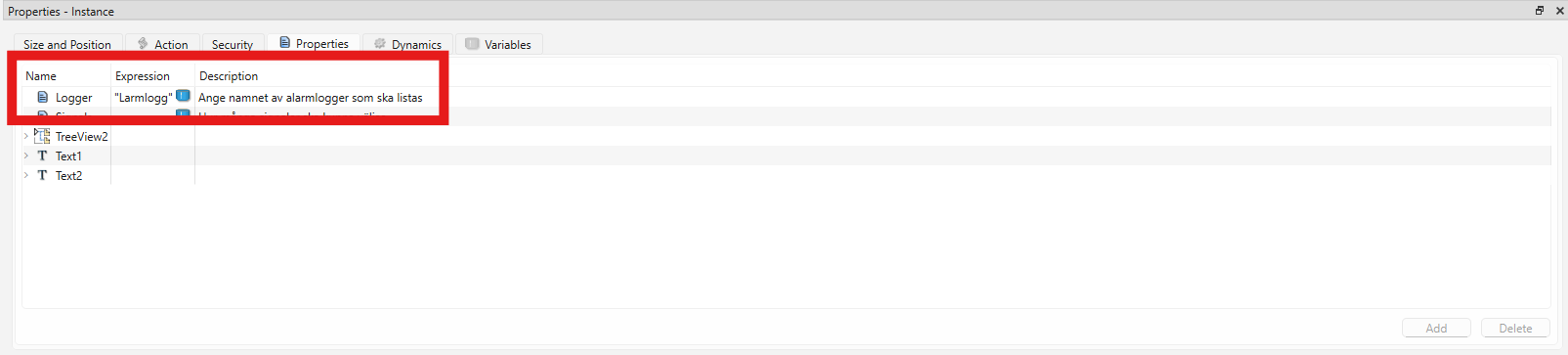

To change which logger appears when creating the report, navigate to Workviews → Partials → ReportController → Alarm_Report in WideQuick® Designer. Select the LarmLogger_List object, go to Properties, and update the Logger property to the desired logger.

Alarm Report One Alarm¶

This template is used for a report on a single specific alarm. It works similarly to the Alarm Report, with two key differences:

• The pie chart is not included.
• The macro queries a specific alarm rather than all alarms in the logger.

The process for changing the logger and database is the same as described for the Alarm Report.

Energy Report¶

The Energy Report templates are more complex than the Alarm Reports, as they manipulate data for presentation purposes. This section explains how to adjust the report to cover different time periods and how to change the logger.

By default, the Energy Report covers a three-year period. It includes an individual graph for each year as well as a three-year summary. Note that the template supports a maximum of three individual year graphs. For example, an Energy Report generated in May 2026 would display 2026 up to May, and full-year data for 2025 and 2024. To ensure the first year graph is fully populated, the end date should be set to the end of December.

Changing Logger¶

To change the logger used by the Energy Report, follow the same steps as for the Alarm Report:

• Set up the new logger.
• Update the macro calls within the report template.
• Update the ReportController view.

Changing year span¶

The process of changing the year span of the Energy Report requires further manipulation of the template as well as changes to the ReportController. Here we will cover the following configurations:

• The current year only
• One year from the current date

Current year only¶

Manipulating the template to only show the current year is the easiest configuration. The report will only contain data from the year it is produced in. For example, a report produced on the 31^st of September 2026 will only show data from the 1^st of January 2026 to the 31^st of September 2026.

First navigate to \Your_Project\Reports\Templates and open EnergyReport.xlsx. Then follow the GIF below:

Now the report template only shows the current year. However it still queries data from three years prior, so further changes are required. Navigate to Workviews → Partials → ReportController → Energy_Report in WideQuick® Designer. Select the to_time_Singel object, go to Properties, and change the value of YearsPrior to 1. The report is now configured to produce an Energy Report of the current year.

One year from current day¶

This configuration produces a full year report regardless of what day it is produced on.

Open EnergyReport.xlsx located in \Your_Project\Reports\Templates. Rather than selecting A:1 to Q:31, select A:97 to Q:127 and set that as the print area. Then select row 113 in the header sheet and paste the following:

=IFERROR("Totalt -- "&TEXT(Meta!B13/86400000+DATE(1970,1,1),"yyyy-mm-dd")&" - "&TEXT(Meta!B14/86400000+DATE(1970,1,1),"yyyy-mm-dd"),"Totalt -- alla år")

Save the Excel file and open WideQuick® Designer. Navigate to Workviews → Partials → ReportController → Energy_Report. Select the to_time_Singel object and change the YearsPrior property to 1.

The reporter will now produce a full year report from the set date, containing one graph for that year.

Energy Report Week¶

The Energy Report Week follows the same structure as the Energy Report, but displays data on a weekly basis instead of yearly. By default it covers a three week period, containing an individual graph for each week as well as a three week summary. Like the Energy Report, it is configured for hourly values.

Changing Logger¶

To change the logger used by the Energy Report Week, follow the same steps as for the Alarm Report:

• Set up the new logger.
• Update the macro calls within the report template.
• Update the ReportController view.

Changing week span¶

The process of changing the week span follows the same steps as Changing year span, with two differences:

• The template file to modify is WeeklyEnergyReport.xlsx, located in \Your_Project\Reports\Templates.
• In the to_time_Singel object properties, use the WeeksPrior value instead of YearsPrior.

The two available configurations are:

• Current week only — The report will only contain data from the current week.
• One week from current day — The report will produce a full week report regardless of what day it is produced on.

Delta Year¶

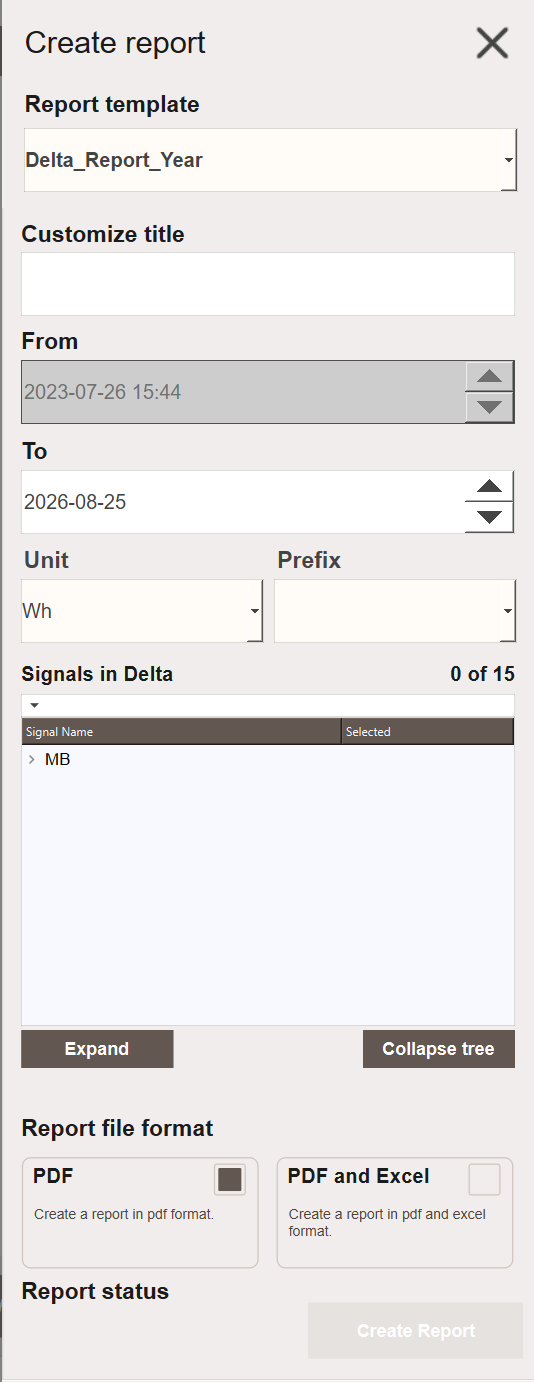

Selected as Delta Report Year in the Report template dropdown, the Delta reports show the change between consecutive readings rather than the logged values themselves, which suits meters reporting a continuously increasing total. The Delta Year presents a monthly delta per column, one column per month, with a yearly total, giving one graph per year. By default it covers three years and allows up to 15 signals.

Two templates exist for this report, differing only in the range of logging intervals they accept. DeltaYear.xlsx handles intervals from monthly to daily. DeltaYear_H.xlsx extends the range down to hourly, for loggers that record more often than once a day. Which one the report uses is set by its SourceFile in Reports.kdat.

Changing Logger¶

The logger is changed the same way as for the Energy Report. See Changing Logger.

Changing the year span¶

The number of years the report covers is set with the YearsPrior property on the to_time_Singel object in the Delta Year ReportController. It defaults to 3.

Both of the narrower configurations available to the Energy Report are available here too, following the same steps as Changing year span: the current year only, or one full year from the current date. The only difference is the template file, which is the Delta Year template in \Your_Project\Reports\Templates as bound to the report in Reports.kdat.

Delta Week¶

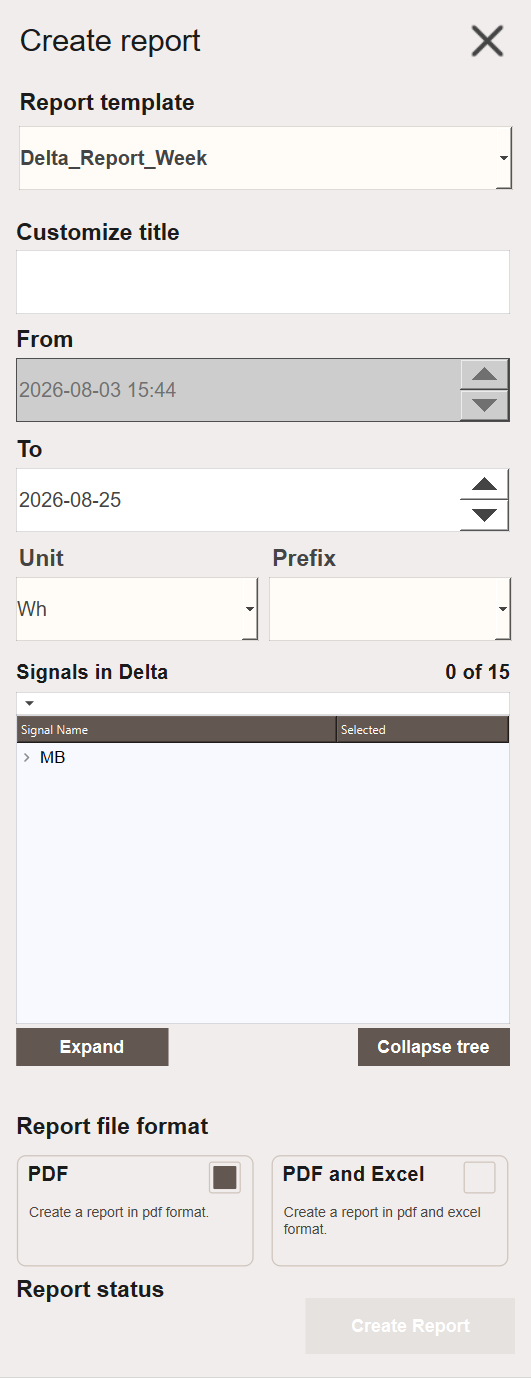

The Delta Week follows the same structure as the Delta Year, but presents the deltas on a weekly basis instead of yearly. Selected as Delta Report Week, it presents a daily delta per column, one column per weekday, with a weekly total. By default it covers three weeks and allows up to 15 signals.

Only one template exists for this report, DeltaWeek.xlsx, and it handles logging intervals anywhere from hourly to daily.

Changing Logger¶

The logger is changed the same way as for the Energy Report. See Changing Logger.

Changing the week span¶

The number of weeks the report covers is set with the WeeksPrior property on the to_time_Singel object in the Delta Week ReportController. It defaults to 3.

Narrowing the report to a single week also requires the template itself to be adjusted, following the same steps as Changing week span for the Energy Report Week. The only difference is the template file: modify DeltaWeek.xlsx in \Your_Project\Reports\Templates instead of WeeklyEnergyReport.xlsx.

Report History¶

The Report History is accessible from the Reports - Schedule workview. It displays a bar chart showing report statistics for the last 30 days, including daily values indicating whether each report was successfully generated and whether it was successfully sent.

Use the navigation buttons to select a specific day and view detailed information. The popup lists all reports for that day along with their status. Failed reports, sent emails, and failed emails can be reconfigured to be recreated or resent.

Next Steps¶

• Extending — creating custom templates and report controllers
